Floodlight tower

Valomasto LED 3x200w (Small)

Floodlighting Tower

  • High quality at economical price
  • Erection height from 3 m to 36 m
  • Available with movable concrete base
  • Including hinge in the foundation
  • Designed according to Eurocode standard
  • All parts hot dip galvanized, life time 25 years
  • Applications for lighting, video surveillance, antennas, etc.

Valotorni303

Light and economical multi-purpose tower. Tower gratings are made of special grade steel and their patented design enables strong and light construction of the tower. The tower has been designed according to Eurocode 3 standard.

Entire tower is hot dip galvanized and its designed life time is 25 years. Warranty period is 3 years for all products, including the spotlights.

Foundation: concrete base with hinge. Base bolts, castings to concrete or rock are also available.

As an additional accessory a side tower is available for helping erection or dismantling of the tower. In such a case the tower can be erected without any
cranes. Different kinds of fasteners are available for lighting, video surveillance cameras, etc.
Length of the tower element is 5800 mm which is suitable for 20 feet container transportation. Erection height is from 3 m to 36 m.

Valonheitinmasto valot a4Mikromaston siirrettävä perustus

Different kind of lighting spots are also available.

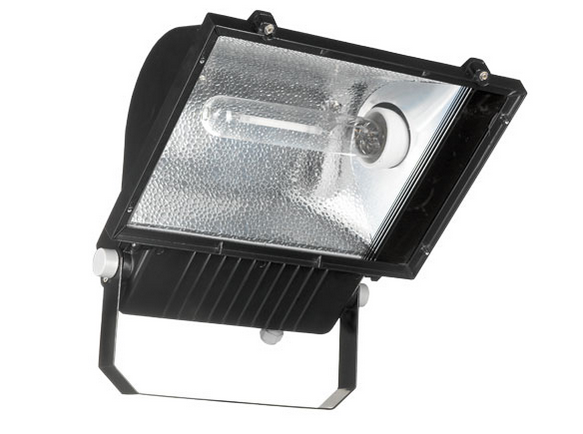

400w
400W metal halide

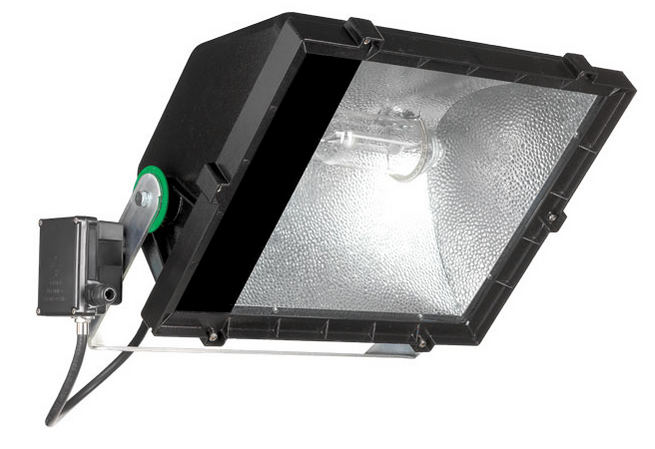

1000w
1000W metal halide

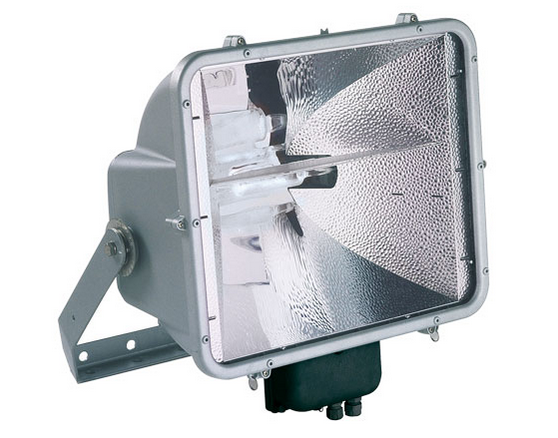

2000w
2000W metal halide













Light tower pdf
